Lamp and Fan in Parallel
Recreate manual Project 29 with separate lamp and motor branches across the battery.
- Time
- 15 min
- Age
- 8+
- Pieces
- 7
- Board
- 10×7
- Build and check a 10×7 snap-grid circuit from a visual diagram.
- Parallel lamp and motor branches each receive the battery voltage independently.
02 / PARTS CHECK
Parts list
- 1×3-snap wireconnector
- 1×4-snap wireconnector
- 1×6-snap wireconnector
- 1×2.5V lamplamp
- 1×Motoroutput
- 1×Slide switchswitch
- 1×3V two-cell battery holderpower
03 / ASSEMBLY

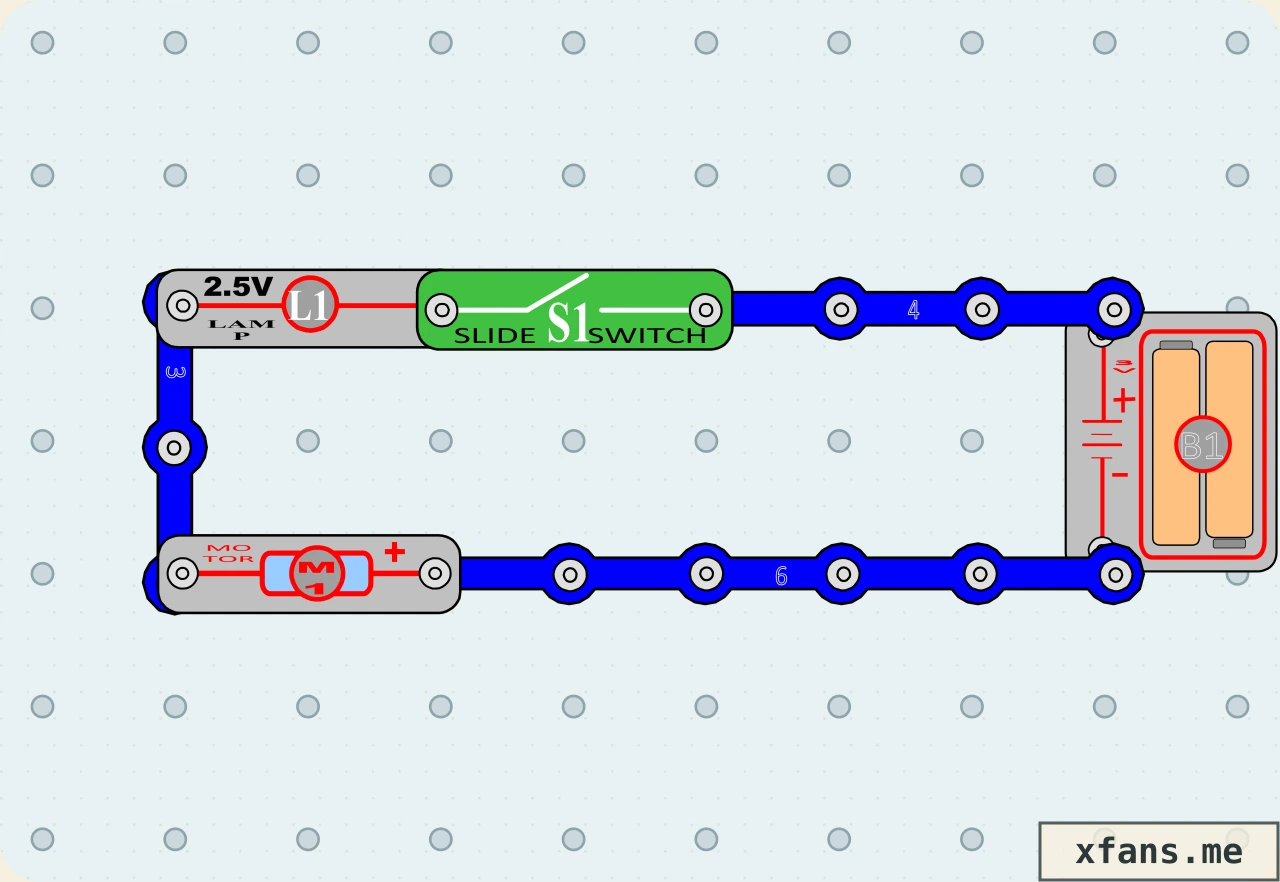

How to build the circuit
- 1
Disconnect the battery and clear the base grid before placing any part.
- 2
Match the final diagram one grid position at a time, placing connecting wires and lower layers first.
- 3
Check the direction of every LED, diode, transistor, battery, and other terminal-sensitive part.
- 4
Press every shared snap firmly, check that no wire shorts the battery, then connect power last.
04 / FIELD NOTES
How it works
The lamp and motor occupy separate parallel branches.
Both branches receive the full battery voltage.
Parallel loads draw more total battery current.
