Two Lamps in Series
Place two identical lamps in one current path and compare their brightness with a parallel circuit.
- Time
- 15 min
- Age
- 8+
- Pieces
- 7
- Board
- 10×7
- Build and check a 10×7 snap-grid circuit from a visual diagram.
- Series lamps share one current path and divide the available supply voltage.
02 / PARTS CHECK
Parts list
- 1×8-snap wireconnector
- 1×3-snap wireconnector
- 1×2-snap wireconnector

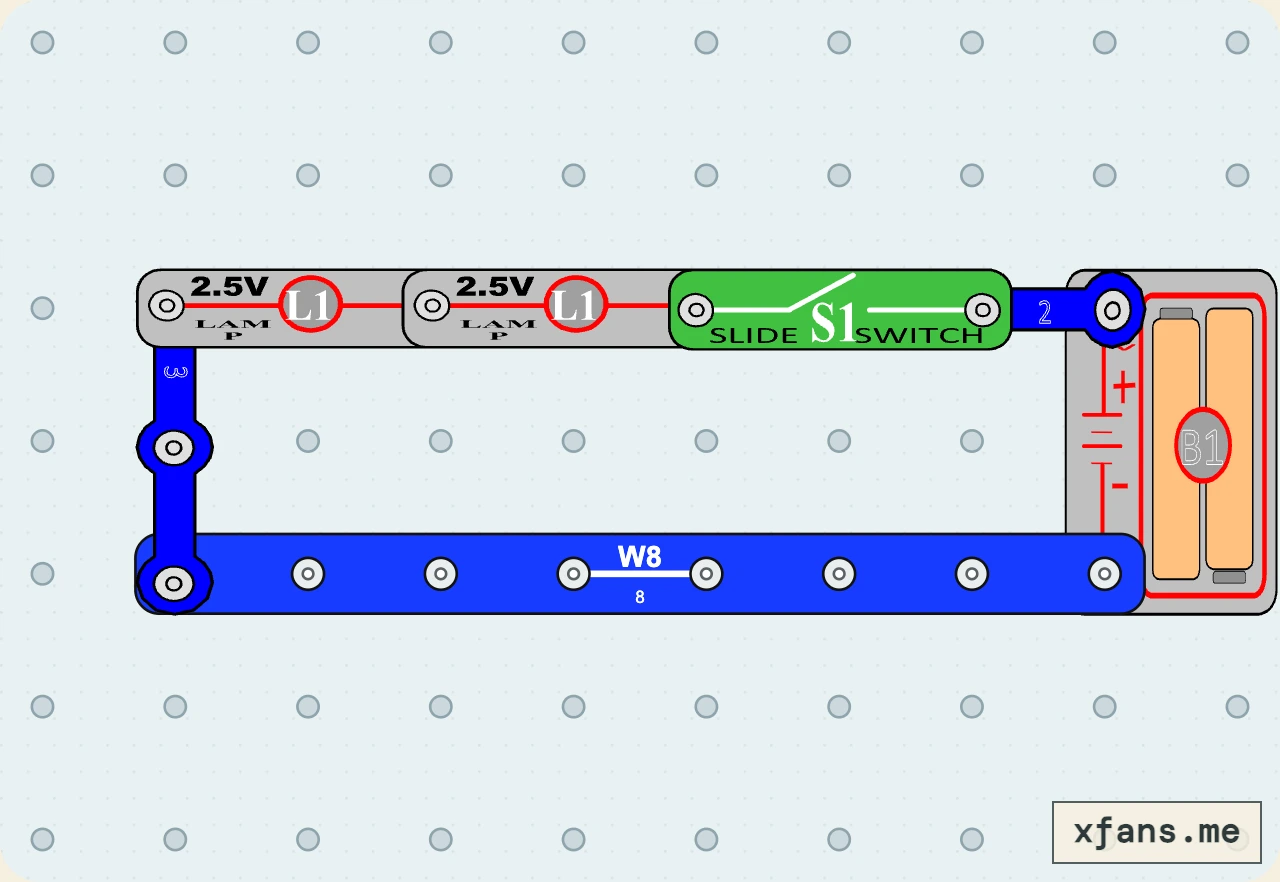

- 2×2.5V lamplamp
- 1×Slide switchswitch
- 1×3V two-cell battery holderpower
03 / ASSEMBLY
How to build the circuit
- 1
Disconnect the battery and clear the base grid before placing any part.
- 2
Match the final diagram one grid position at a time, placing connecting wires and lower layers first.
- 3
Check the direction of every LED, diode, transistor, battery, and other terminal-sensitive part.
- 4
Press every shared snap firmly, check that no wire shorts the battery, then connect power last.
04 / FIELD NOTES
How it works
Series components share one current path.
The battery voltage is divided across the two lamps, so each is dimmer than a single lamp.
If either lamp is removed, the only path is broken and both turn off.
