Magnetic Reed-Switch Lamp
Replace the manual Project 1 slide switch with a magnet-operated reed switch.
- Time
- 15 min
- Age
- 8+
- Pieces
- 6
- Board
- 10×7

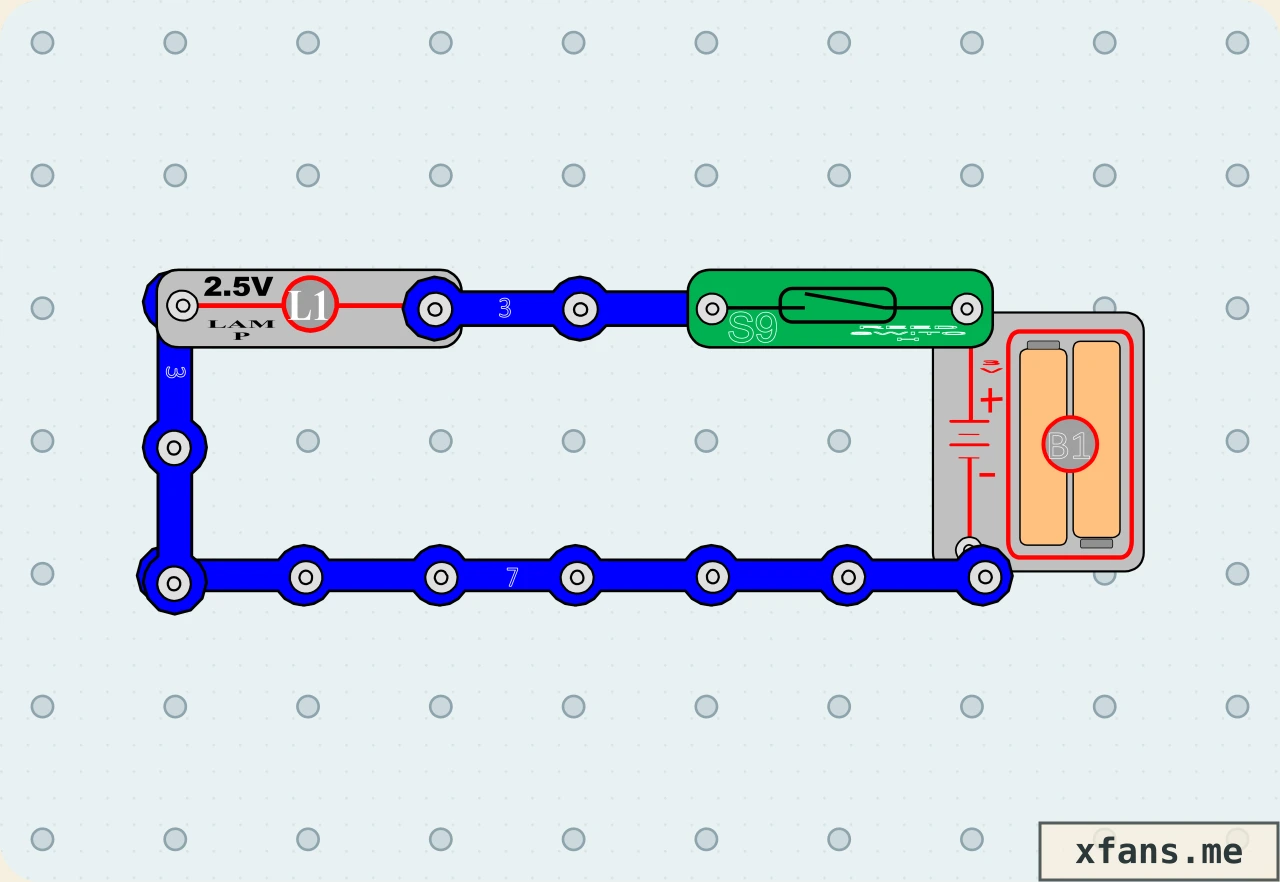

- Build and check a 10×7 snap-grid circuit from a visual diagram.
- A magnetic field can switch a lamp without physical contact outside the sealed reed tube.
02 / PARTS CHECK
Parts list
- 1×7-snap wireconnector
- 2×3-snap wireconnector
- 1×2.5V lamplamp
- 1×Reed switchswitch
- 1×3V two-cell battery holderpower
03 / ASSEMBLY
How to build the circuit
- 1
Disconnect the battery and clear the base grid before placing any part.
- 2
Match the final diagram one grid position at a time, placing connecting wires and lower layers first.
- 3
Check the direction of every LED, diode, transistor, battery, and other terminal-sensitive part.
- 4
Press every shared snap firmly, check that no wire shorts the battery, then connect power last.
04 / FIELD NOTES
How it works
A nearby magnet closes the reed switch.
The closed contacts complete the lamp circuit.
Moving the magnet away opens the circuit.
Explore more lamp circuit projects →
05 / TEST
Test and expected result
- What to do
- Move a magnet toward the reed switch and then away again.
- What to expect
- The lamp follows the magnetic switch state without direct contact.
06 / SAFETY
Build smart
- Use only the 3V two-cell battery holder.
- Never connect the battery terminals directly together.
- Disconnect the battery before moving any component.
07 / TROUBLESHOOTING
If it does not work
- Press every overlapping snap down firmly.
- Check the battery direction and replace weak batteries.
- Compare every component position with the final diagram.
08 / FREQUENTLY ASKED QUESTIONS
Questions about this circuit
What is the main idea behind this circuit?
A magnetic field can switch a lamp without physical contact outside the sealed reed tube.
What should I check first if it does not work?
Press every overlapping snap down firmly.
