BUILD CARD · EASY
Tilt-Activated Lamp
A position-sensitive variation of manual Project 1 using the three-terminal tilt switch.
- Time
- 15 min
- Age
- 8+
- Pieces
- 6
- Board
- 10×7
- Build and check a 10×7 snap-grid circuit from a visual diagram.
- Board orientation moves an internal contact that opens or closes the lamp circuit.
02 / PARTS CHECK
Parts list
- 1×7-snap wireconnector
- 2×3-snap wireconnector
- 1×2.5V lamplamp
- 1×Tilt switchswitch
- 1×3V two-cell battery holderpower
03 / ASSEMBLY
How to build the circuit
- 1
Disconnect the battery and clear the base grid before placing any part.
- 2

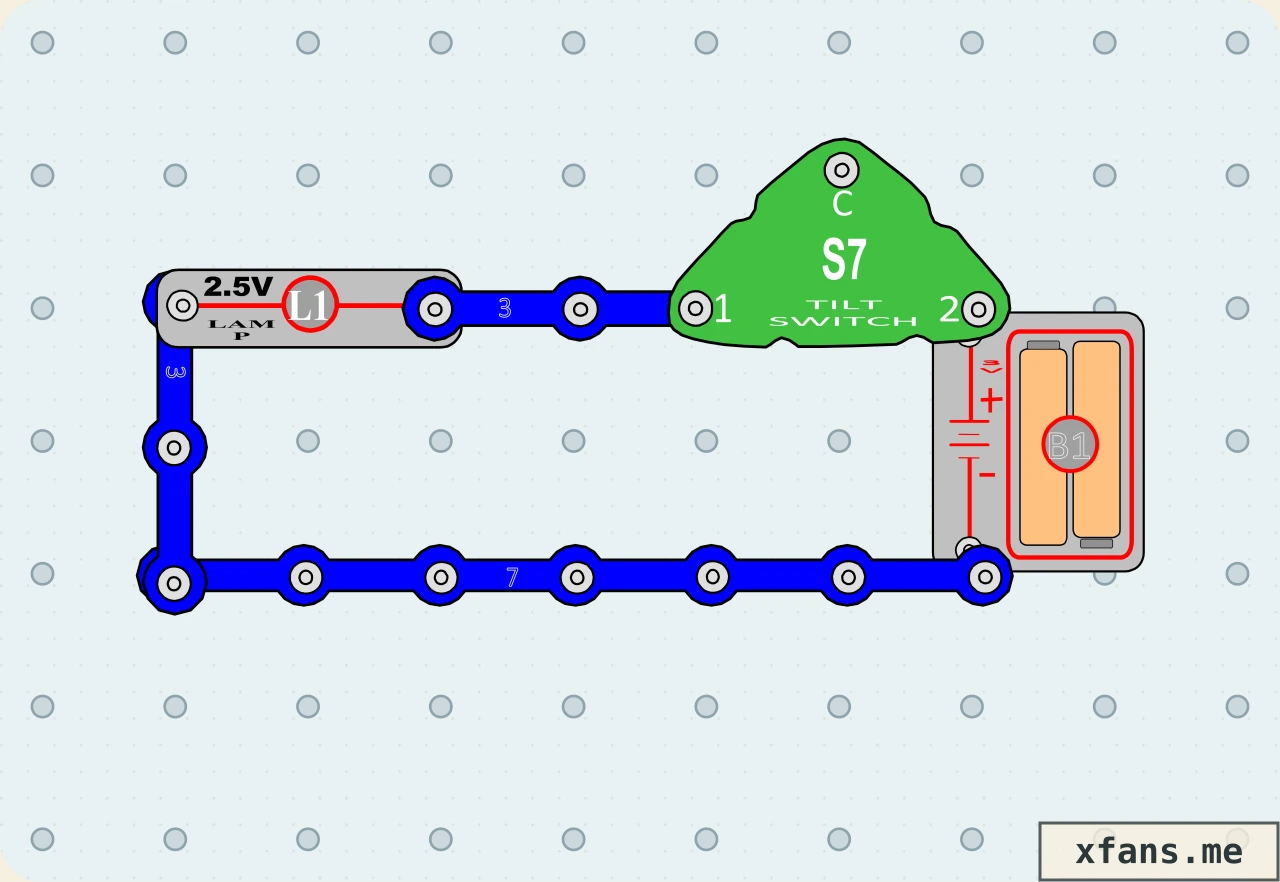

Match the final diagram one grid position at a time, placing connecting wires and lower layers first.
- 3
Check the direction of every LED, diode, transistor, battery, and other terminal-sensitive part.
- 4
Press every shared snap firmly, check that no wire shorts the battery, then connect power last.
04 / FIELD NOTES
How it works
Tilting moves the switch contact between terminals.
One position closes the lamp circuit.
Changing the board angle opens it again.
Explore more lamp circuit projects →
05 / TEST
Test and expected result
- What to do
- Slowly tilt the board between two stable angles.
- What to expect
- The lamp changes state when the internal tilt contact moves.
06 / SAFETY
Build smart
- Use only the 3V two-cell battery holder.
- Never connect the battery terminals directly together.
- Disconnect the battery before moving any component.
07 / TROUBLESHOOTING
If it does not work
- Press every overlapping snap down firmly.
- Check the battery direction and replace weak batteries.
- Compare every component position with the final diagram.
08 / FREQUENTLY ASKED QUESTIONS
Questions about this circuit
What is the main idea behind this circuit?
Board orientation moves an internal contact that opens or closes the lamp circuit.
What should I check first if it does not work?
Press every overlapping snap down firmly.
