Series and Parallel Circuits

Compare series and parallel lamp circuits, including current paths, brightness, and what happens when a lamp is removed.

01 / GUIDED BUILDS

Choose a circuit

5 visual projects in this topic.

Connect two lamps across the same two supply rails and compare them with the series version.

Place two identical lamps in one current path and compare their brightness with a parallel circuit.

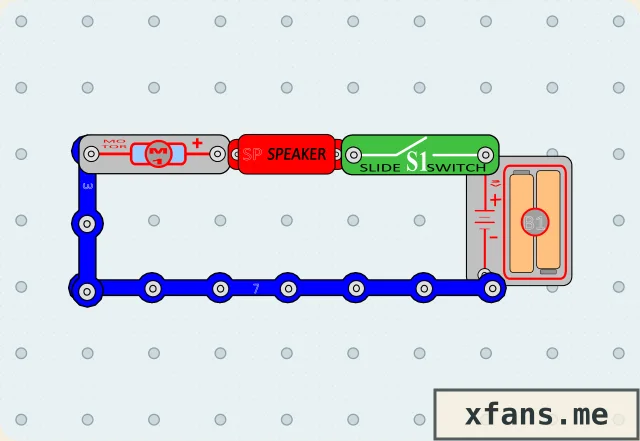

Recreate manual Project 30 by putting a motor and speaker in the same current path.

Recreate manual Project 29 with separate lamp and motor branches across the battery.

Recreate manual Project 27 with the lamp and motor sharing one current path.
