BUILD CARD · MEDIUM
Transistor Motor Driver
Use a press switch and small base current to let an NPN transistor control a motor load.
- Time
- 25 min
- Age
- 10+
- Pieces
- 9
- Board
- 10×7

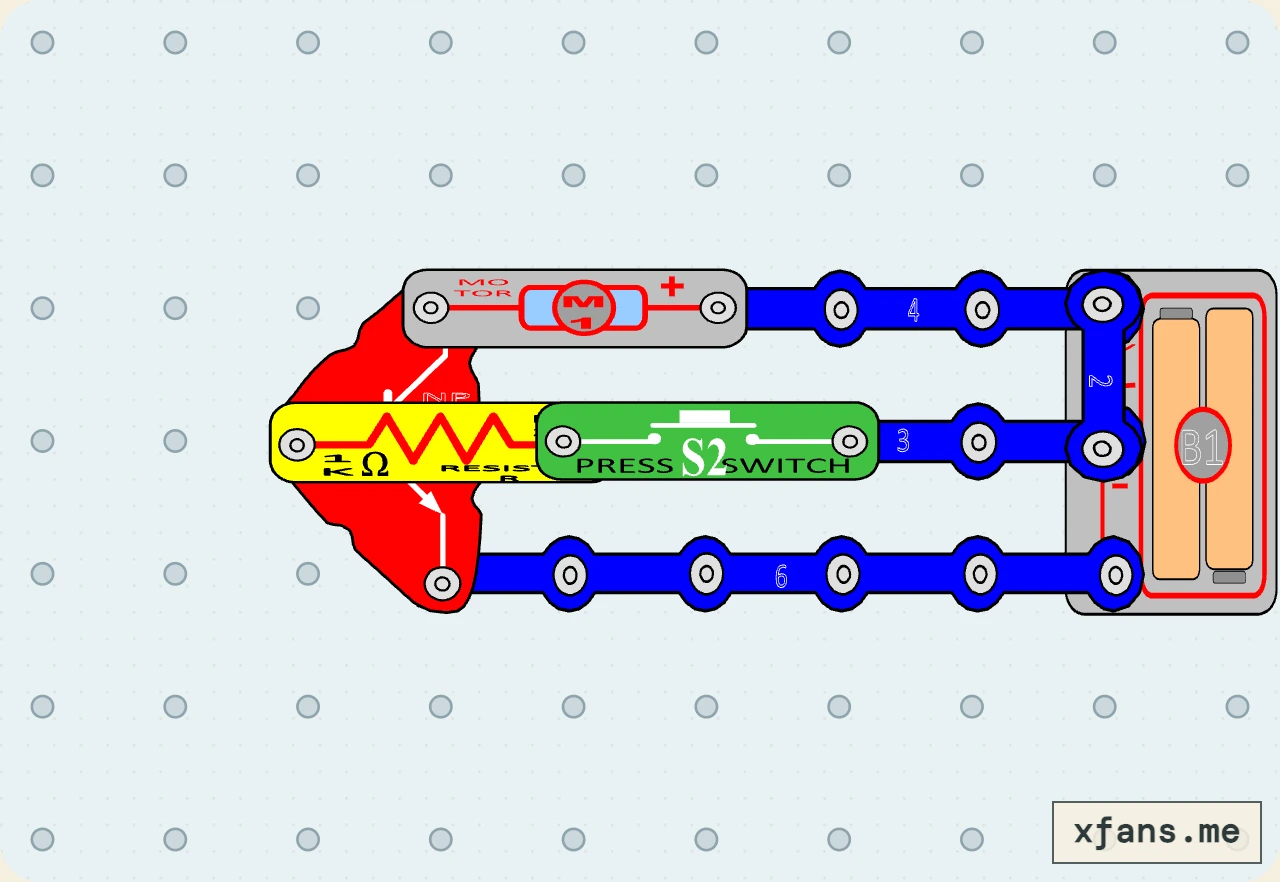

- Build and check a 10×7 snap-grid circuit from a visual diagram.
- A small base current lets an NPN transistor switch the larger current required by a motor.
02 / PARTS CHECK
Parts list
- 1×4-snap wireconnector
- 1×6-snap wireconnector
- 1×3-snap wireconnector
- 1×2-snap wireconnector
- 1×NPN transistorsemiconductor
- 1×Motoroutput
- 1×1 kΩ resistorresistor
- 1×Press switchswitch
- 1×3V two-cell battery holderpower
03 / ASSEMBLY
How to build the circuit
- 1
Disconnect the battery and clear the base grid before placing any part.
- 2
Match the final diagram one grid position at a time, placing connecting wires and lower layers first.
- 3
Check the direction of every LED, diode, transistor, battery, and other terminal-sensitive part.
- 4
Press every shared snap firmly, check that no wire shorts the battery, then connect power last.
04 / FIELD NOTES
How it works
The press switch sends a limited current through the 1 kΩ resistor into the transistor base.
That base current allows a larger collector-to-emitter current to power the motor.
The transistor lets a small control signal switch a larger load current.
Explore more motor circuit projects →
05 / TEST
Test and expected result
- What to do
- Press the control switch for only a short test and release it.
- What to expect
- A small base current switches the larger collector current that runs the motor.
06 / SAFETY
Build smart
- Use only the 3V battery holder.
- Run the motor in short tests because this basic version has no flyback diode.
- Keep fingers and loose material away from the motor shaft.
07 / TROUBLESHOOTING
If it does not work
- Press and hold the switch only while testing.
- Check the transistor collector, base and emitter positions.
- Spin the motor shaft gently by hand with power disconnected if it is stuck.
08 / FREQUENTLY ASKED QUESTIONS
Questions about this circuit
What is the main idea behind this circuit?
A small base current lets an NPN transistor switch the larger current required by a motor.
What should I check first if it does not work?
Press and hold the switch only while testing.
