BUILD CARD · EASY
Vibration Switch LED
Create a movement-sensitive circuit that flashes a white LED when the switch is shaken or tapped.
- Time
- 15 min
- Age
- 8+
- Pieces
- 6
- Board
- 10×7

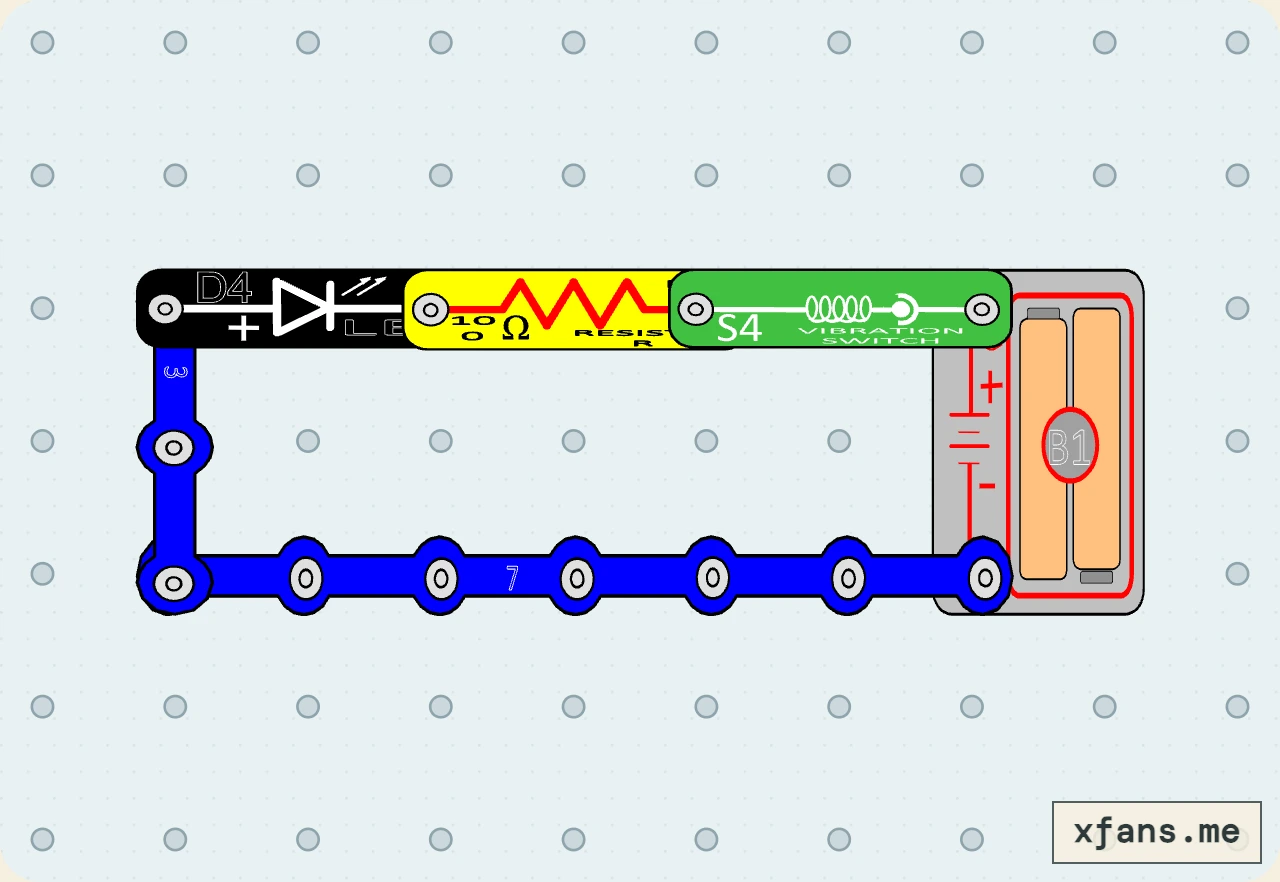

- Build and check a 10×7 snap-grid circuit from a visual diagram.
- Movement creates brief switch closures that produce visible LED flashes.
02 / PARTS CHECK
Parts list
- 1×7-snap wireconnector
- 1×3-snap wireconnector
- 1×White LEDsemiconductor
- 1×100 Ω resistorresistor
- 1×Vibration switchswitch
- 1×3V two-cell battery holderpower
03 / ASSEMBLY
How to build the circuit
- 1
Disconnect the battery and clear the base grid before placing any part.
- 2
Match the final diagram one grid position at a time, placing connecting wires and lower layers first.
- 3
Check the direction of every LED, diode, transistor, battery, and other terminal-sensitive part.
- 4
Press every shared snap firmly, check that no wire shorts the battery, then connect power last.
04 / FIELD NOTES
How it works
Movement briefly closes the vibration switch.
Each closure completes the loop and flashes the LED.
The resistor limits current through the LED.
Explore more led circuit projects →
05 / TEST
Test and expected result
- What to do
- Tap the board gently near the vibration switch without striking or dropping it.
- What to expect
- The LED flashes as movement briefly closes the vibration-switch contacts.
06 / SAFETY
Build smart
- Use only the 3V battery holder.
- Do not strike or drop the board.
- Disconnect the battery after use.
07 / TROUBLESHOOTING
If it does not work
- Tap gently near the vibration switch.
- Reverse the LED if it never lights.
- Check every snap and battery direction.
